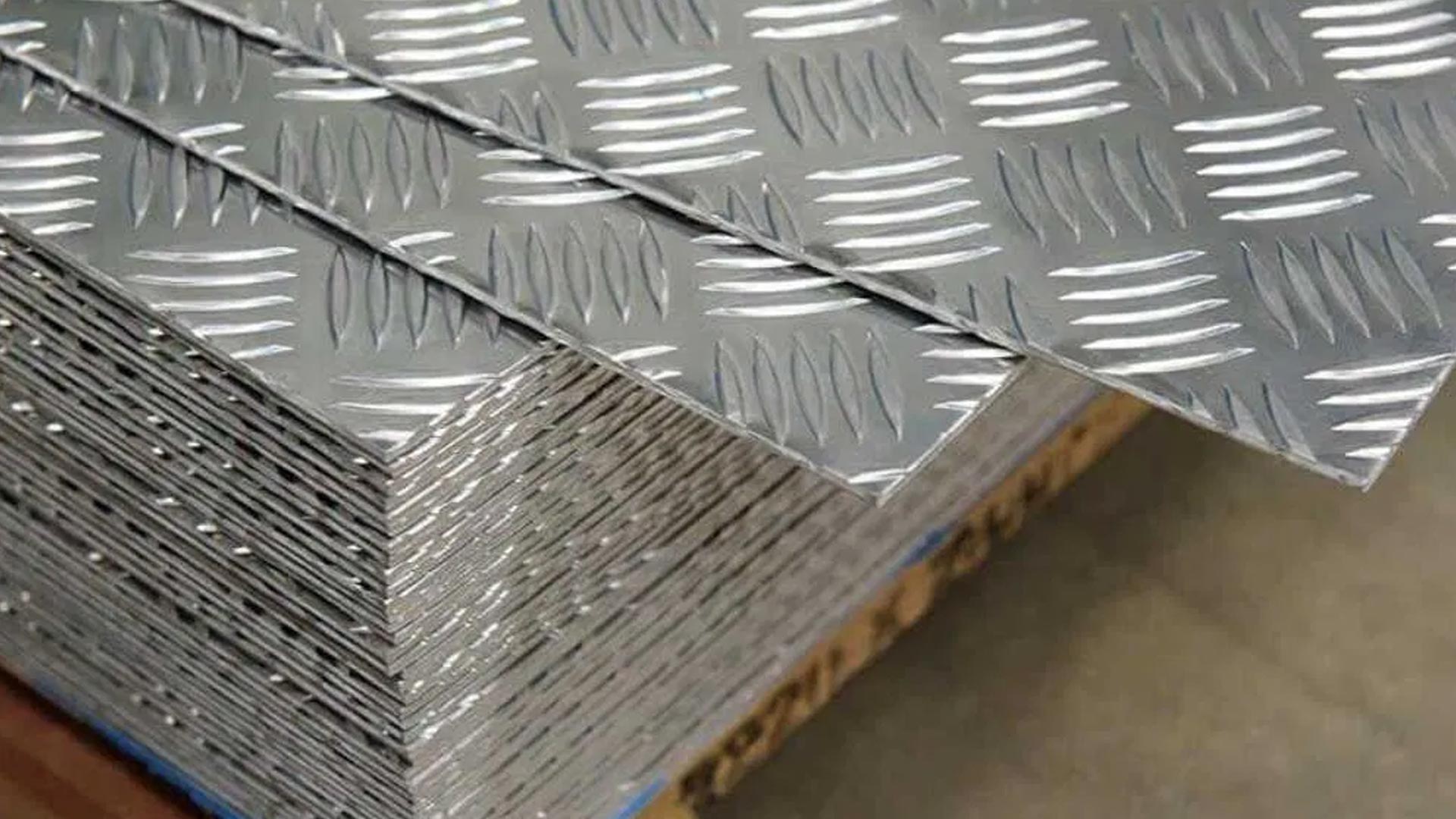

SS Chequered Plate
Stainless Steel Chequered Plate is one type of finishes available in stainless steel
plates. Stainless steel is one of the most used materials for pipes, plates, sheets and
coils in the world. There are different grades, specifications and dimensions. Navstar
Steel is a leading manufacturer and supplier of the Stainless Steel Chequered Plate in
all different grades and dimensions.
SS Chequered Plate Specification
| Specifications |
ASTM A240 / ASME SA240 |
| Item |
Stainless Steel Chequered Plates (Hot rolled) |
| Standard |
Chequered Plates |
| Width |
1250mm, 1500mm, etc |
| Length |
1500mm, 3000mm, 6000mm, etc |
| Thickness |
3~6mm |
| Form |
Chequered Plates |
| Grade |
ASTM /ASME SA 240 gr. Tp 304 , 304l, 316, 316l chequered Plate |
| Test Reports |
PMI test, D meter test, dimension verification, IGC practice E, IGC practice
C, IGC practice B, UT as per SA435, UT as per SA578, UT as per SA577 and
Impact test. |
Dimensions and standard weight table
| Size (mm) |
Grade |
Thickness
(mm) |
Weight
(kg/m2) |
| 1000 x 2000 |
304/304L/316 |
3 |
25.6 |
| 1000 x 2000 |
304/304L/316 |
4 |
34.1 |
| 1000 x 2000 |
304/304L/316 |
5 |
42.7 |
| 1000 x 2000 |
304/304L/316 |
6 |
51.2 |
SS Checkered Sheet Size Chart
Testing (Destructive, Non Destructive)
|
Stocked Sizes
|
|
Size (in inches)
|
Size (in mm)
|
|
.125"
|
3.18mm
|
|
.134"
|
3.40mm
|
|
.156"
|
3.96mm
|
|
.187"
|
4.75mm
|
|
.250"
|
6.35mm
|
Application And Usage
- Components or fittings of medical
instruments, tableware, kitchen utensil, kitchen ware
- As stepping or decking parts for large
chemical industry equipment or industrial tanks
- Architectural purposes, interior and
exterior decoration for building, escalators
- For making of milk or food processing
facilities
- Hospital equipment
