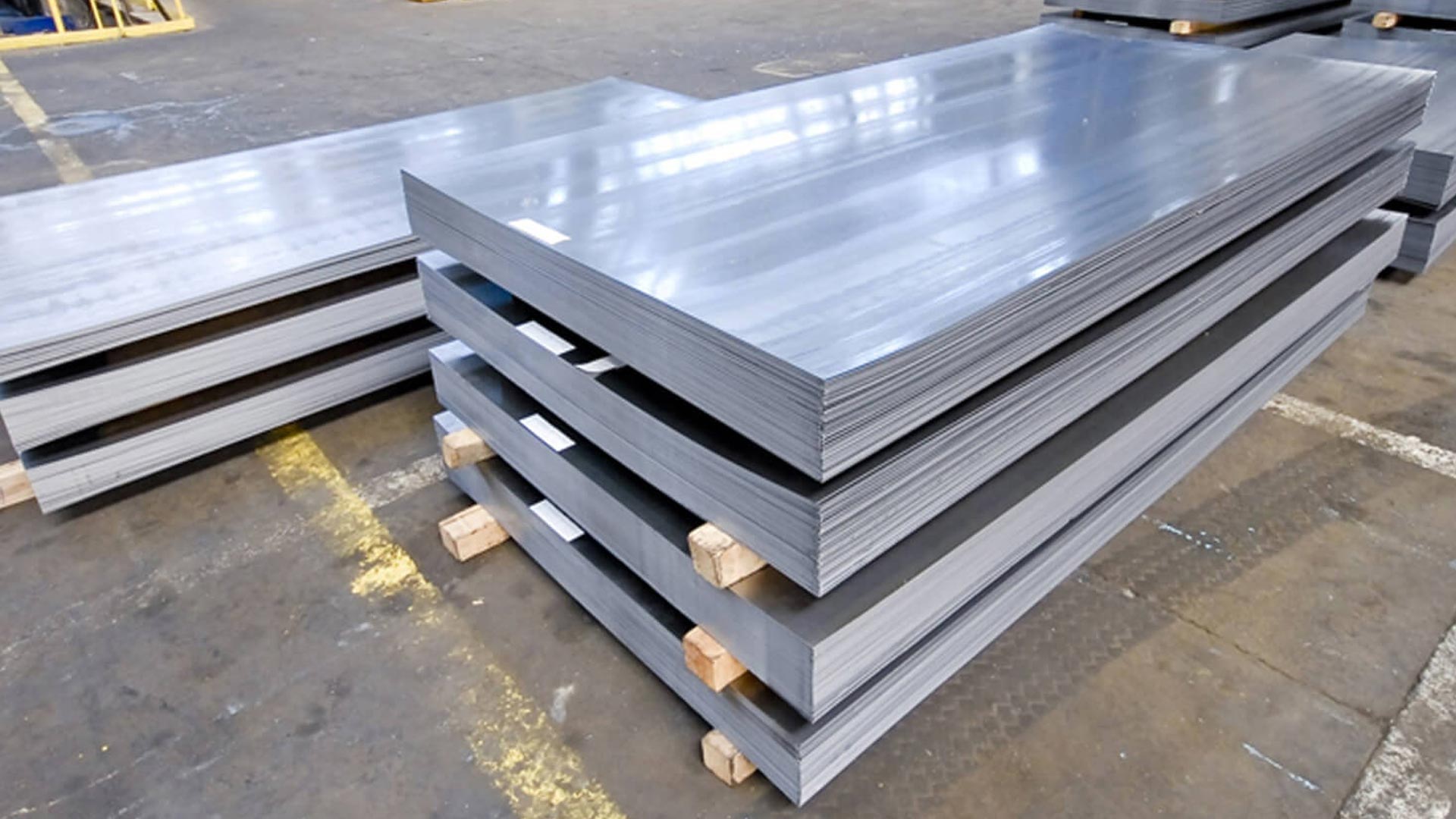

SS Cold Rolled Coil & Sheet
A stainless steel (SS) Cold Rolled sheet & coil specification, price, & weight chart would typically include details like the stainless steel grade (e.g., 304, 316), thickness (in millimeters), width & length of the sheet/coil, estimated weight per sheet/coil, & the corresponding price per kilogram, with variations based on the specific grade & dimensions.
SS Cold Rolled Coil & Sheet Specification
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Thickness | 0.5mm-5mm |
| Width |
1250mm, 1500mm, etc |
| Length | Satndard Size : 2500mm, 3000mm, Custom length aslo available as per customer requirements |
| Surface Finish | 2B, BA, NO.4, NO.8, PVC |
| Finish | Cold rolled sheet (CR) |
| Form | Coils, Sheet, Shim Sheet, Flats. |
| Test Reports | PMI test, D meter test, dimension verification, IGC practice E, IGC practice C, IGC practice B, UT as per SA435, UT as per SA578, UT as per SA577 and Impact test. |
Thickness Chart
| Gauge | Thickness | Thickness Tolerance |
|---|---|---|
| 12 gauge | 0.109" | 2.78mm | ± 0.009 | ± 0.23mm |
| 11 gauge | 0.120" | 3.05 mm | ± 0.005 |
| 24 gauge | 0.025" | 0.64 mm | ± 0.003 | ± 0.08mm |
| 16 gauge | 0.063" | 1.59mm | ± 0.006 | ± 0.15mm |
| 14 gauge | 0.078" | 1.98mm | ± 0.007 | ± 0.18mm |
| 20 gauge | 0.038" | 0.95mm | ± 0.004 | ± 0.10mm |
| 18 gauge | 0.050" | 1.27mm | ± 0.005 | ± 0.13mm |
| 22 gauge | 0.031" | 0.79 mm | ± 0.004 | ± 0.10mm |
Stainless Steel
We offered products range consists of Stainless Steel Sheets, and Sheets Plates and Coils. All offered products are manufactured using high-quality material under the supervision of the quality team. Apart from this, these products are known for their corrosion resistance, long service life, perfect finishing and user-friendly.
RANGE: 0.5 mm to 4 mm thick upto 1500 mm width & upto Custom length as per Customer requirements
Stainless Steel: ASTM / ASME SA 240 202, 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316H, 316L, 316 TI, 317, 317L, 321, 321H, 347, 347 H, 409, 410, 410S, 430
